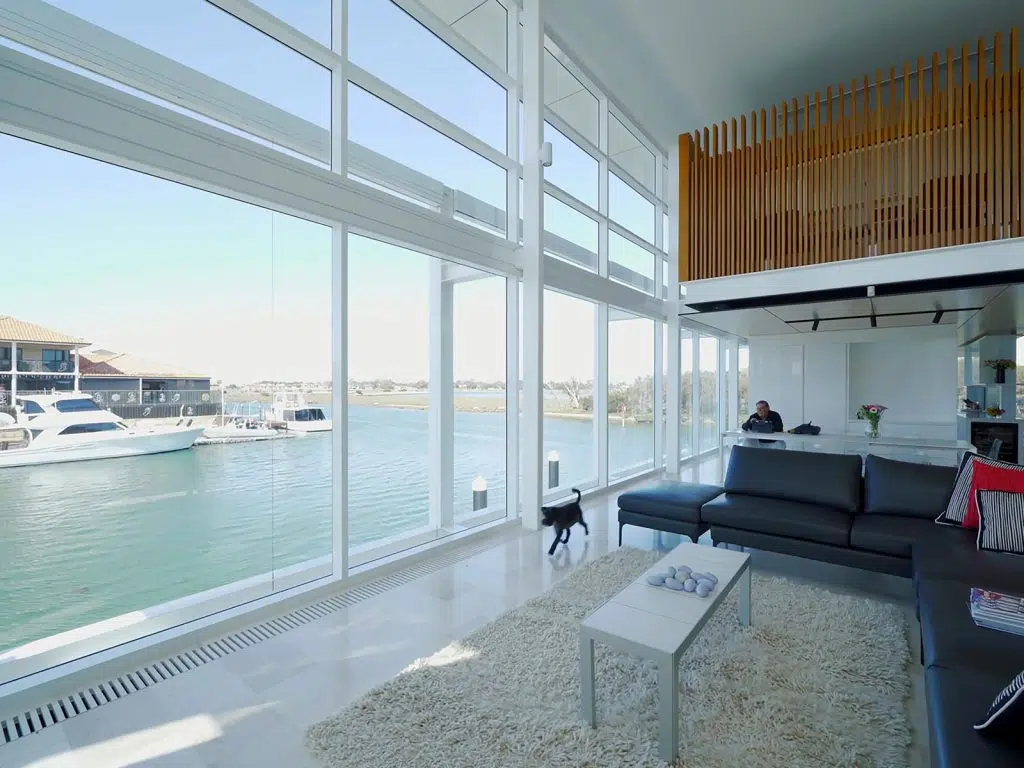

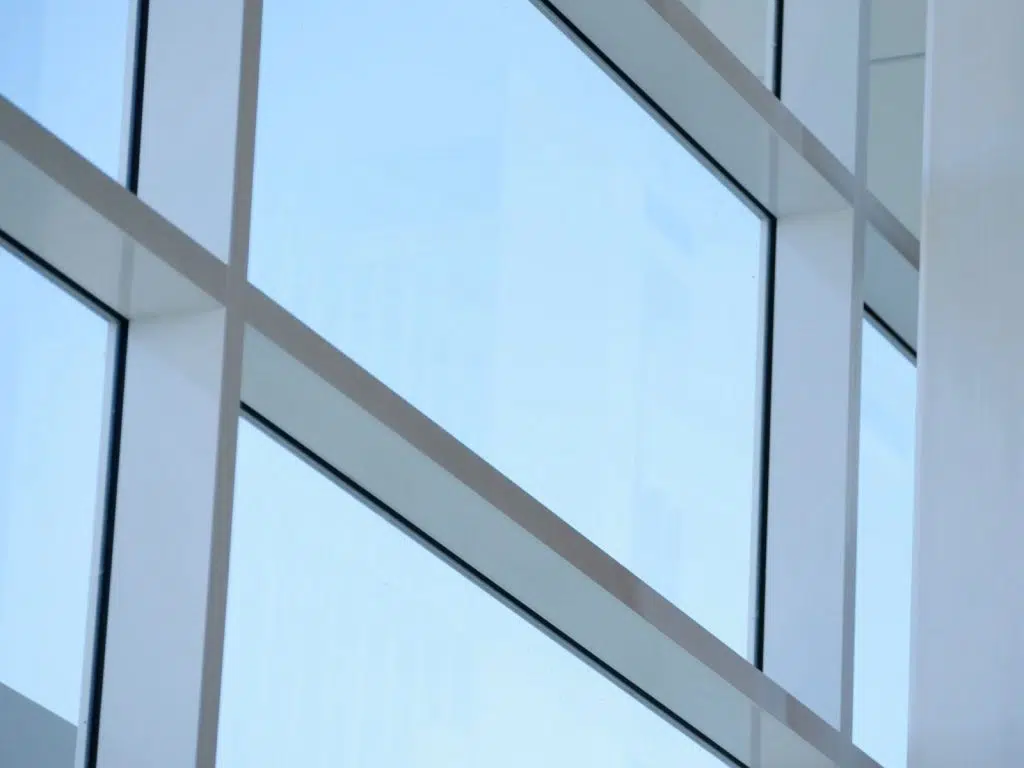

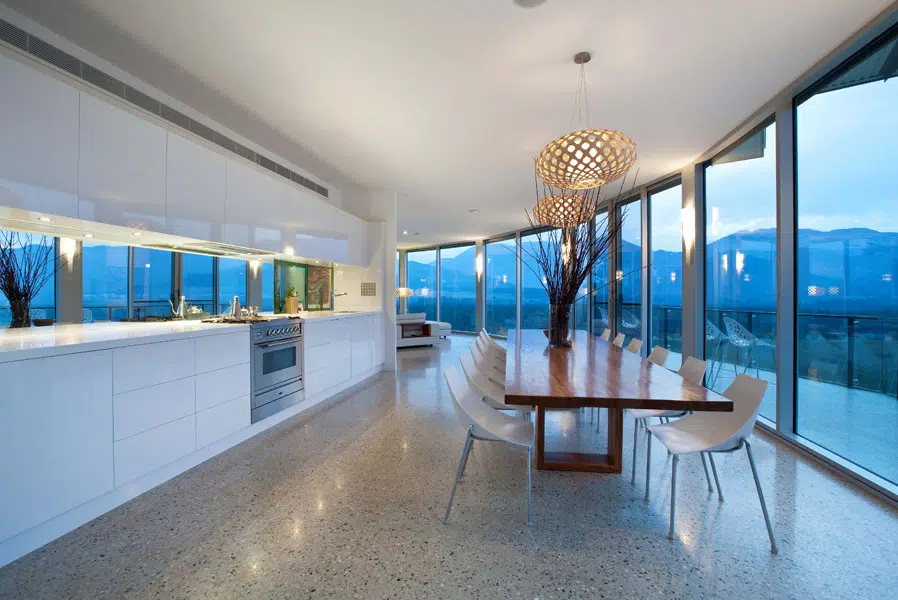

Series 626 – Double Glazed Front Glazed 150mm Framing

Double glazed FrontGLAZE™ framing system designed specifically to accept 24mm Insulating Glass Units (IGUs) with the required 12mm glass bite.

• High water resistance can be achieved. Has been successfully tested at 600Pa water resistance.
• The 150 x 60mm framing system has a variety of transom and mullion alternatives. This system will also accept many of the Series 606 FrontGLAZE™ frame accessories including doors, sub-frames and thresholds.
• Glazing pocket will accept co-extruded captive glazing wedges.
• Two mullion designs allow frames to be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing.
• Alternative structurally glazed mullion.
• Optional midrail will also accept 24mm IGUs.
• Transoms have built-in drip groove to encourage water to leave the face of the framing.
• Sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.
